ABB IEC INDUSTRIAL MOTORS

ABB industrial low voltage， high voltage and nema motors supplier

ABB Motors Technical Specifications

Target Industries & Industrial Applications for ABB Electric Motors

Engineered for high energy efficiency, severe duty reliability, and continuous operation, ABB industrial electric motors deliver optimal drive performance and low total cost of ownership across major global industries:

Energy, Process & Hazardous Area:

ATEX certified explosion-proof motors and IE3/IE4 severe duty low-voltage motors for Oil & Gas, Chemicals & Pharmaceuticals, and Power Generation facilities.

Heavy Duty & Mining Operations:

High-torque cast iron motors driving heavy crushers, conveyors, and slurry pumps in Cement, Metals, and Minerals & Raw Materials processing.

Manufacturing & Infrastructure:

Variable speed AC motors and high-efficiency induction drives for Plastics & Rubber machinery, Pulp & Paper production, and Construction heavy equipment.

Specialized Industrial Machinery:

IP69K stainless steel washdown motors for Food & Beverage, inverter-duty crane/brake motors for Ports and Lifting & Hoisting, as well as dedicated pump drives for Water & Wastewater and Wind Power generators.

* Wedrive Power offers global sourcing for full-range ABB AC induction motors, including process performance motors, general performance motors, and high-voltage industrial drives.

Above is the technical specification table of ABB industrial motors.

* Note: Maximum motor power ratings are based on 4-pole motors for a 50 Hz line frequency. WeDrive ensures high-precision power transmission with ABB technology.

Power Applications:

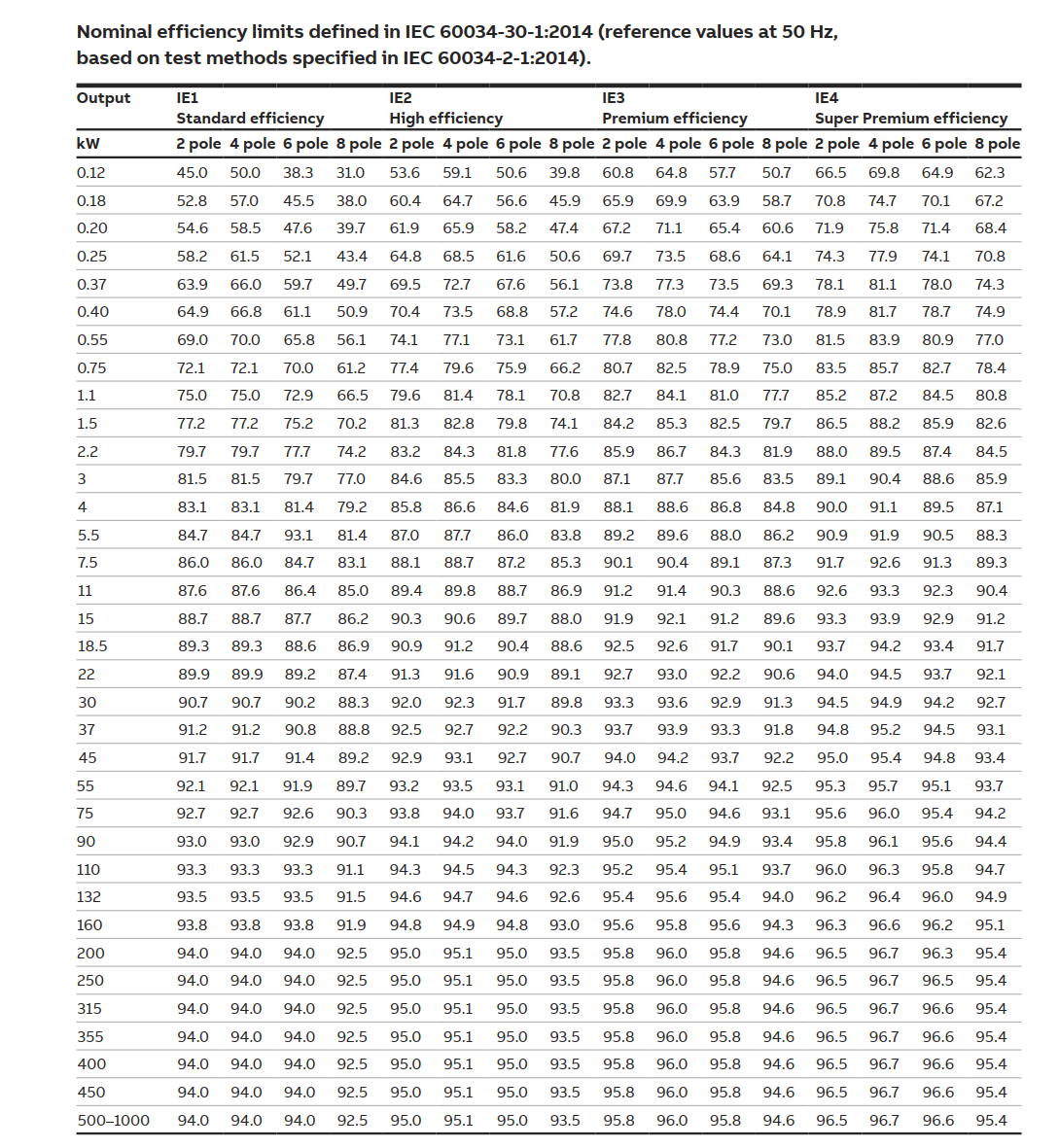

Nominal efficiency limits defined in IEC 60034-30-1:2014 (reference values at 50 Hz, based on test methods specified in IEC 60034-2-1:2014).
Output (kW)	IE1 - Standard efficiency				IE2 - High efficiency				IE3 - Premium efficiency				IE4 - Super Premium efficiency
Output (kW)	2 pole	4 pole	6 pole	8 pole	2 pole	4 pole	6 pole	8 pole	2 pole	4 pole	6 pole	8 pole	2 pole	4 pole	6 pole	8 pole
0.12	45.0	50.0	38.3	31.0	53.6	59.1	50.6	39.8	60.8	64.8	57.7	50.7	66.5	69.8	64.9	62.3
0.18	52.8	57.0	45.5	38.0	60.4	64.7	56.6	45.9	65.9	69.9	63.9	58.7	70.8	74.7	70.1	67.2
0.20	54.6	58.5	47.6	39.7	61.9	65.9	58.2	47.4	67.2	71.1	65.4	60.6	71.9	75.8	71.4	68.4
0.25	58.2	61.5	52.1	43.4	64.8	68.5	61.6	50.6	69.7	73.5	68.6	64.1	74.3	77.9	74.1	70.8
0.37	63.9	66.0	59.7	49.7	69.5	72.7	67.6	56.1	73.8	77.3	73.5	69.3	78.1	81.1	78.0	74.3
0.40	64.9	66.8	61.1	50.9	70.4	73.5	68.8	57.2	74.6	78.0	74.4	70.1	78.9	81.7	78.7	74.9
0.55	69.0	70.0	65.8	56.1	74.1	77.1	73.1	61.7	77.8	80.8	77.2	73.0	81.5	83.9	80.9	77.0
0.75	72.1	72.1	70.0	61.2	77.4	79.6	75.9	66.2	80.7	82.5	78.9	75.0	83.5	85.7	82.7	78.4
1.1	75.0	75.0	72.9	66.5	79.6	81.4	78.1	70.8	82.7	84.1	81.0	77.7	85.2	87.2	84.5	80.8
1.5	77.2	77.2	75.2	70.2	81.3	82.8	79.8	74.1	84.2	85.3	82.5	79.7	86.5	88.2	85.9	82.6
2.2	79.7	79.7	77.7	74.2	83.2	84.3	81.8	77.6	85.9	86.7	84.3	81.9	88.0	89.5	87.4	84.5
3	81.5	81.5	79.7	77.0	84.6	85.5	83.3	80.0	87.1	87.7	85.6	83.5	89.1	90.4	88.6	85.9
4	83.1	83.1	81.4	79.2	85.8	86.6	84.6	81.9	88.1	88.6	86.8	84.8	90.0	91.1	89.5	87.1
5.5	84.7	84.7	93.1	81.4	87.0	87.7	86.0	83.8	89.2	89.6	88.0	86.2	90.9	91.9	90.5	88.3
7.5	86.0	86.0	84.7	83.1	88.1	88.7	87.2	85.3	90.1	90.4	89.1	87.3	91.7	92.6	91.3	89.3
11	87.6	87.6	86.4	85.0	89.4	89.8	88.7	86.9	91.2	91.4	90.3	88.6	92.6	93.3	92.3	90.4
15	88.7	88.7	87.7	86.2	90.3	90.6	89.7	88.0	91.9	92.1	91.2	89.6	93.3	93.9	92.9	91.2
18.5	89.3	89.3	88.6	86.9	90.9	91.2	90.4	88.6	92.5	92.6	91.7	90.1	93.7	94.2	93.4	91.7
22	89.9	89.9	89.2	87.4	91.3	91.6	90.9	89.1	92.7	93.0	92.2	90.6	94.0	94.5	93.7	92.1
30	90.7	90.7	90.2	88.3	92.0	92.3	91.7	89.8	93.3	93.6	92.9	91.3	94.5	94.9	94.2	92.7
37	91.2	91.2	90.8	88.8	92.5	92.7	92.2	90.3	93.7	93.9	93.3	91.8	94.8	95.2	94.5	93.1
45	91.7	91.7	91.4	89.2	92.9	93.1	92.7	90.7	94.0	94.2	93.7	92.2	95.0	95.4	94.8	93.4
55	92.1	92.1	91.9	89.7	93.2	93.5	93.1	91.0	94.3	94.6	94.1	92.5	95.3	95.7	95.1	93.7
75	92.7	92.7	92.6	90.3	93.8	94.0	93.7	91.6	94.7	95.0	94.6	93.1	95.6	96.0	95.4	94.2
90	93.0	93.0	92.9	90.7	94.1	94.2	94.0	91.9	95.0	95.2	94.9	93.4	95.8	96.1	95.6	94.4
110	93.3	93.3	93.3	91.1	94.3	94.5	94.3	92.3	95.2	95.4	95.1	93.7	96.0	96.3	95.8	94.7
132	93.5	93.5	93.5	91.5	94.6	94.7	94.6	92.6	95.4	95.6	95.4	94.0	96.2	96.4	96.0	94.9
160	93.8	93.8	93.8	91.9	94.8	94.9	94.8	93.0	95.6	95.8	95.6	94.3	96.3	96.6	96.2	95.1
200	94.0	94.0	94.0	92.5	95.0	95.1	95.0	93.5	95.8	96.0	95.8	94.6	96.5	96.7	96.3	95.4
250	94.0	94.0	94.0	92.5	95.0	95.1	95.0	93.5	95.8	96.0	95.8	94.6	96.5	96.7	96.5	95.4
315	94.0	94.0	94.0	92.5	95.0	95.1	95.0	93.5	95.8	96.0	95.8	94.6	96.5	96.7	96.6	95.4
355	94.0	94.0	94.0	92.5	95.0	95.1	95.0	93.5	95.8	96.0	95.8	94.6	96.5	96.7	96.6	95.4
400	94.0	94.0	94.0	92.5	95.0	95.1	95.0	93.5	95.8	96.0	95.8	94.6	96.5	96.7	96.6	95.4
450	94.0	94.0	94.0	92.5	95.0	95.1	95.0	93.5	95.8	96.0	95.8	94.6	96.5	96.7	96.6	95.4
500–1000	94.0	94.0	94.0	92.5	95.0	95.1	95.0	93.5	95.8	96.0	95.8	94.6	96.5	96.7	96.6	95.4

ABB IEC low voltage industrial motors mounted type

Technical Specifications
Mounted Type

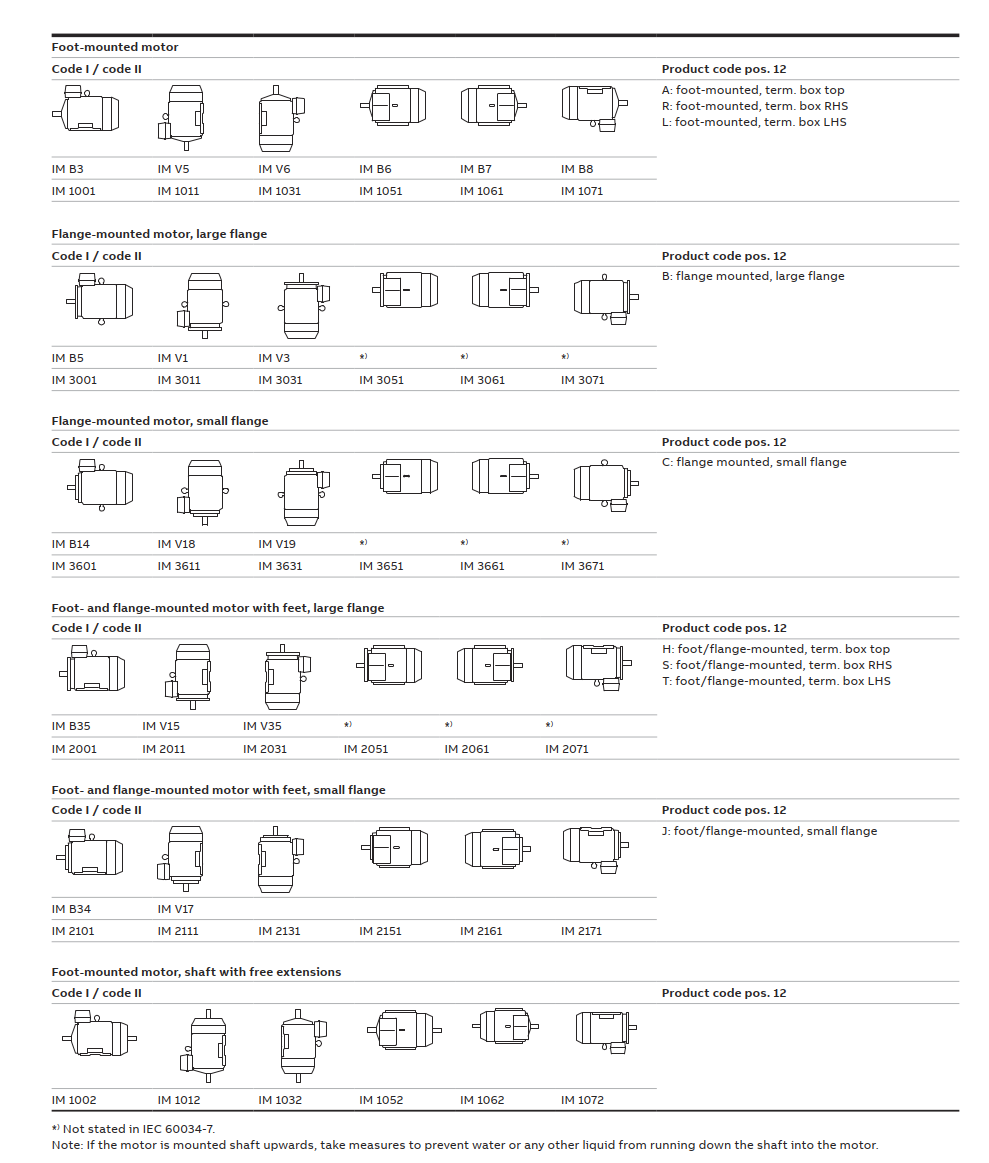

ABB Electric Motor Mounting Positions (IEC 60034-7)

Refer to the table below for standard IEC 60034-7 mounting position codes (Code I / Code II) and corresponding ABB product code designation (Position 12).

Mounting Type & Category	IEC Mounting Code (Code I / Code II)	Product Code Designation (Pos. 12)
Foot-mounted motor	Code I: IM B3, IM V5, IM V6, IM B6, IM B7, IM B8 Code II: IM 1001, IM 1011, IM 1031, IM 1051, IM 1061, IM 1071	A: foot-mounted, term. box top R: foot-mounted, term. box RHS L: foot-mounted, term. box LHS
Flange-mounted motor, large flange (FF/B5)	Code I: IM B5, IM V1, IM V3, ), ), * Code II: IM 3001, IM 3011, IM 3031, IM 3051, IM 3061, IM 3071	B: flange mounted, large flange
Flange-mounted motor, small flange (FT/B14)	Code I: IM B14, IM V18, IM V19, ), ), * Code II: IM 3601, IM 3611, IM 3631, IM 3651, IM 3661, IM 3671	C: flange mounted, small flange
Foot- and flange-mounted motor, large flange	Code I: IM B35, IM V15, IM V35, ), ), * Code II: IM 2001, IM 2011, IM 2031, IM 2051, IM 2061, IM 2071	H: foot/flange-mounted, term. box top S: foot/flange-mounted, term. box RHS T: foot/flange-mounted, term. box LHS
Foot- and flange-mounted motor, small flange	Code I: IM B34, IM V17, IM 2131, IM 2151, IM 2161, IM 2171 Code II: IM 2101, IM 2111, IM 2131, IM 2151, IM 2161, IM 2171	J: foot/flange-mounted, small flange
Foot-mounted motor, shaft with free extensions	Code II: IM 1002, IM 1012, IM 1032, IM 1052, IM 1062, IM 1072	Refer to specific product code specification

* Notes: Not stated in IEC 60034-7.

Important: If the motor is mounted shaft upwards, take measures to prevent water or any other liquid from running down the shaft into the motor.

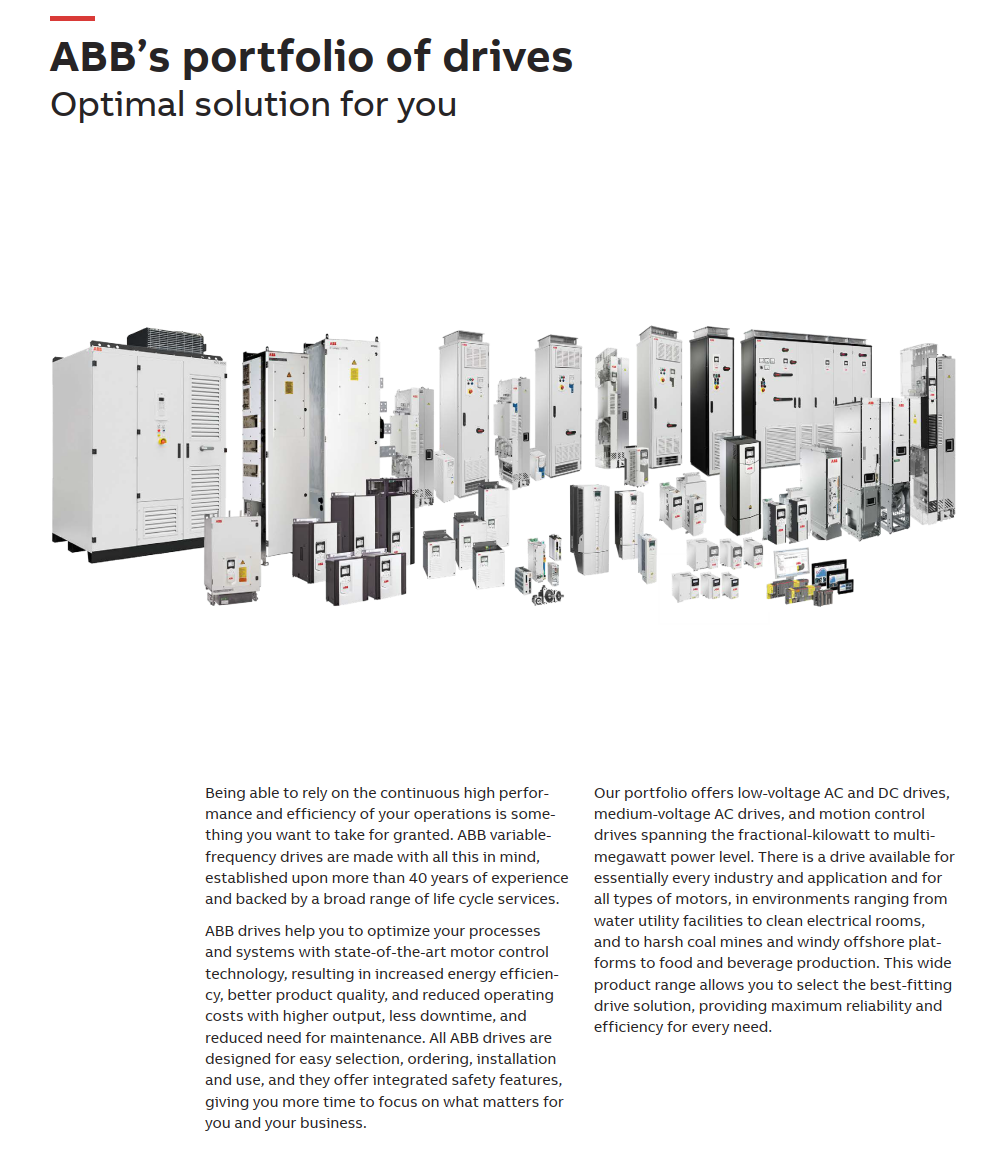

ABB IEC low voltage industrial inverters

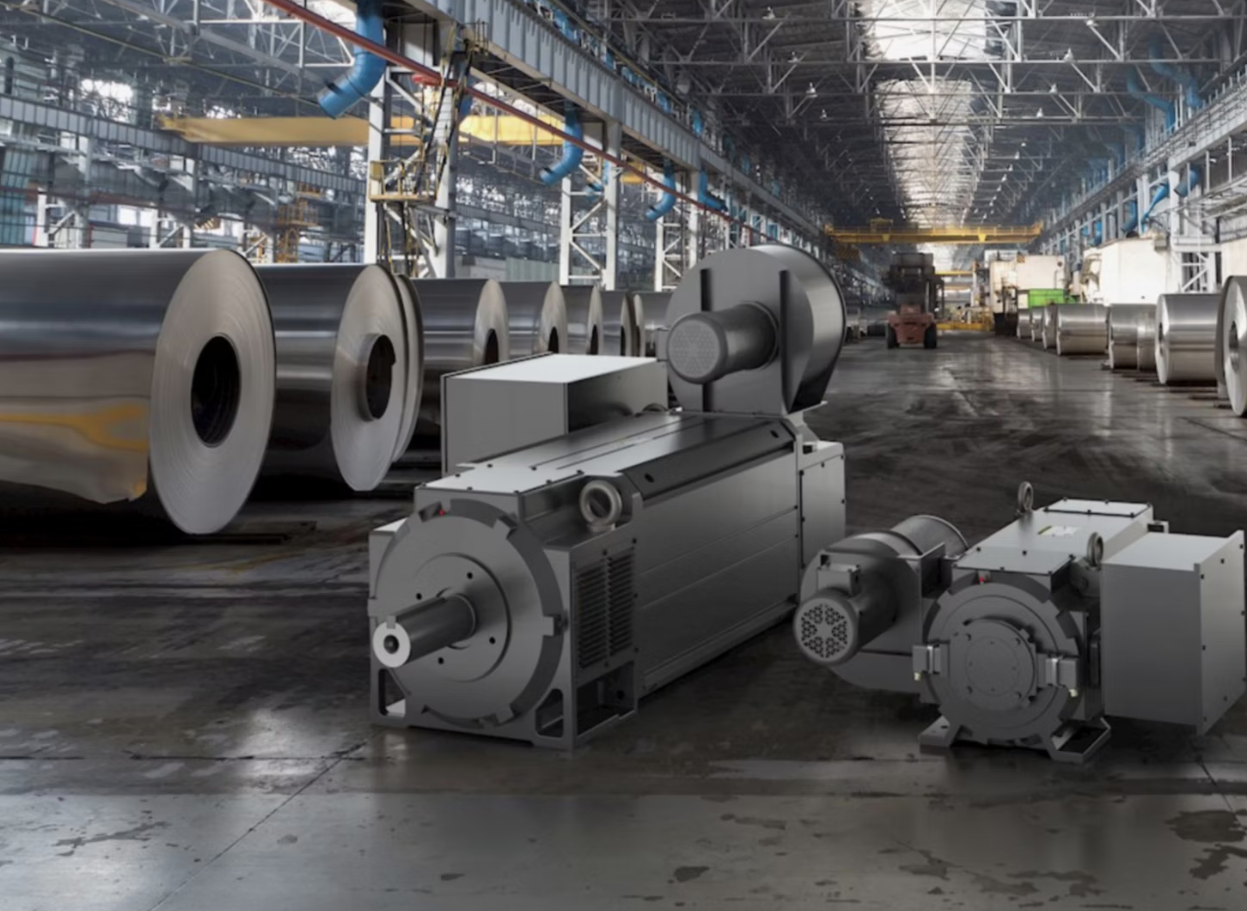

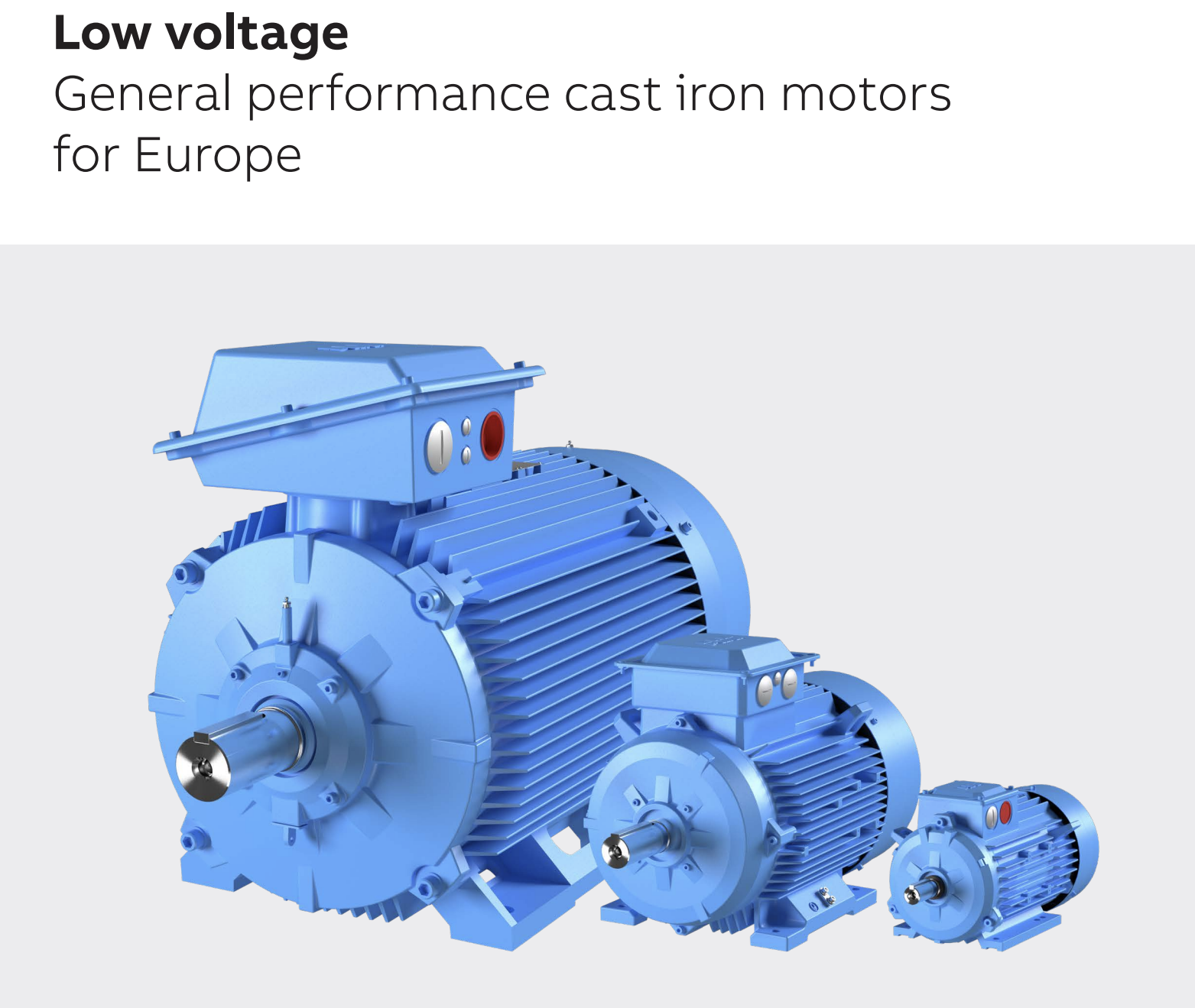

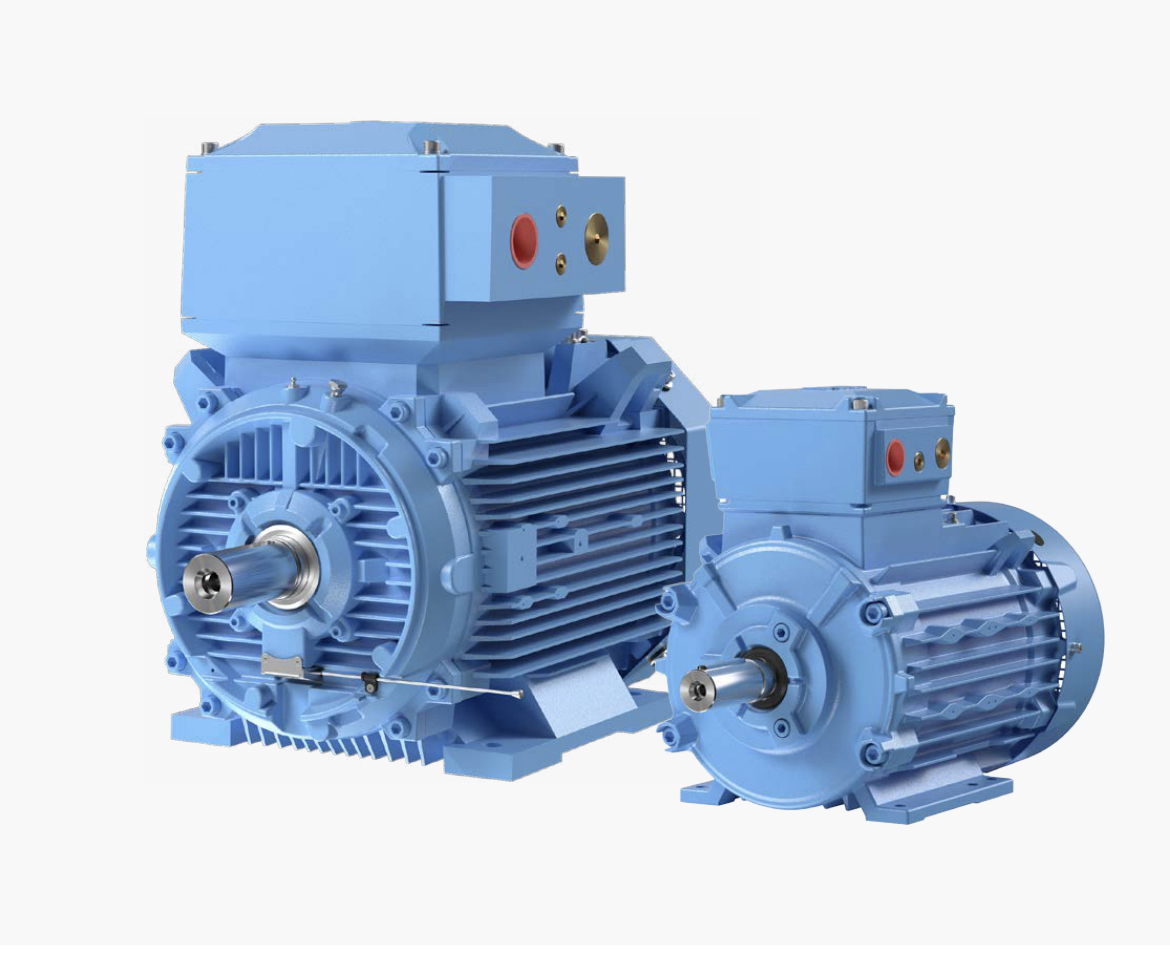

IEC Low voltage motors

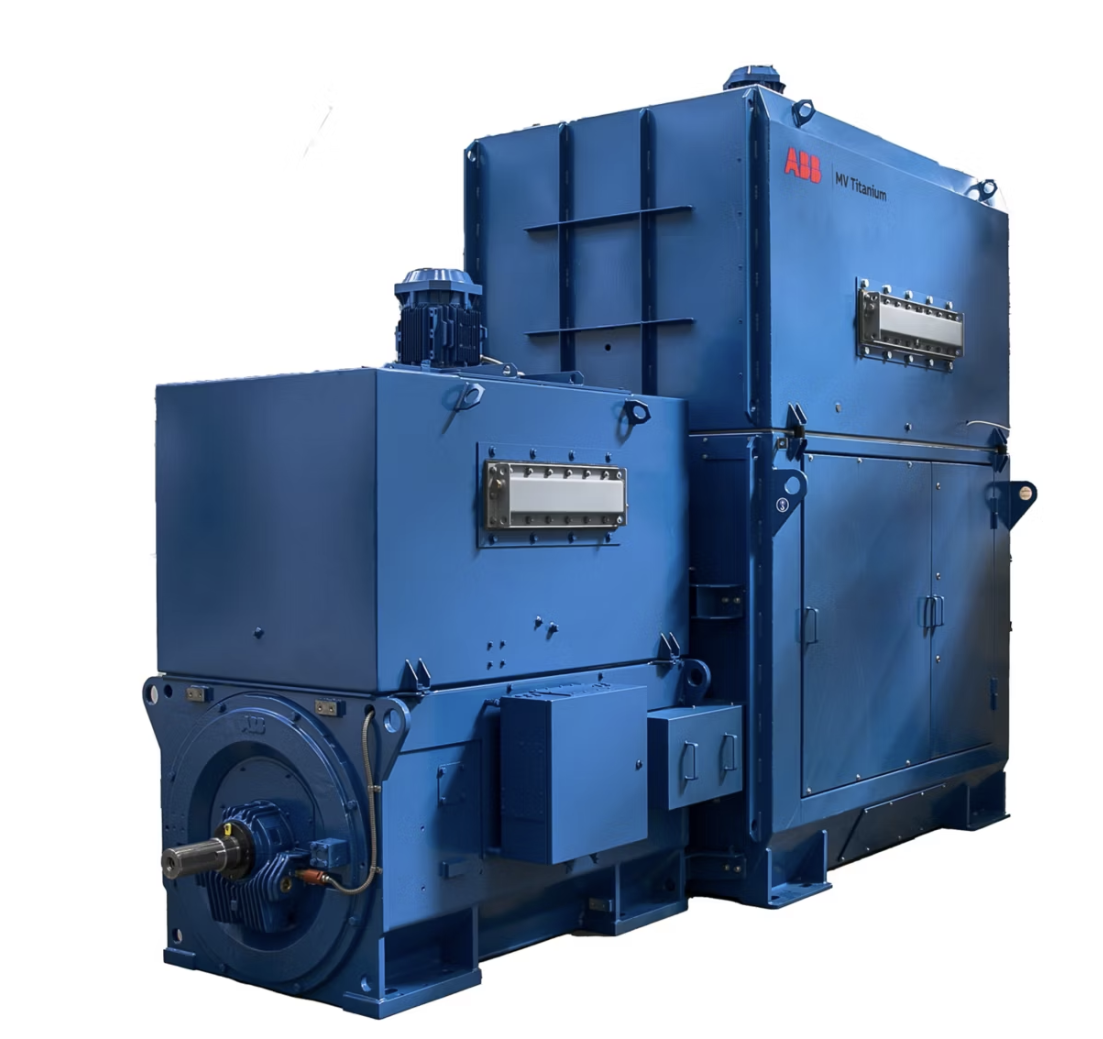

High voltage induction motors

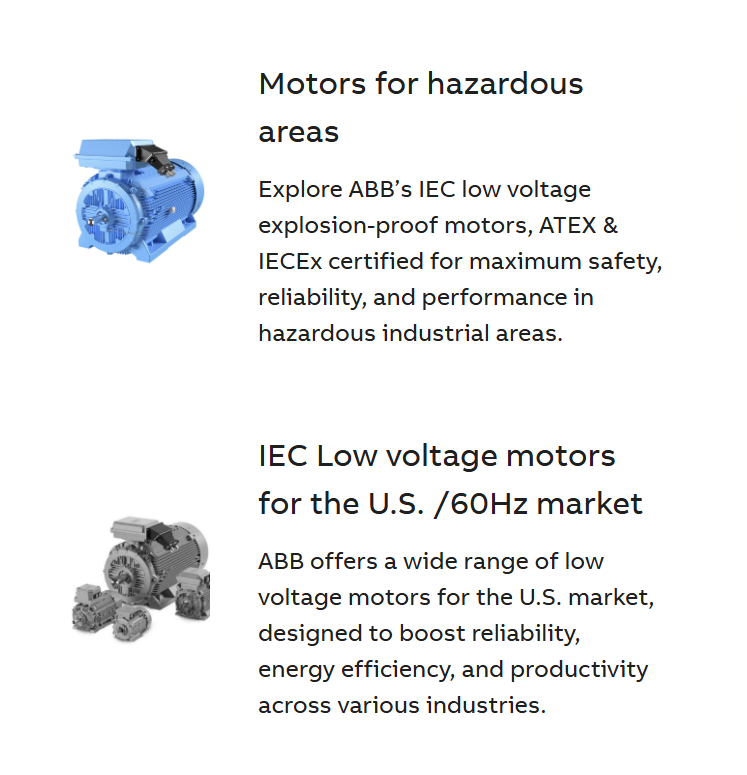

Motors for hazardous areas
